Mercedes AIRMATIC Symptoms — What They Usually Mean

A “Stop — vehicle too low” message, a corner that sinks overnight, or a compressor that keeps running: this guide explains what each AIRMATIC symptom usually points to, what we check at our Al Quoz, Dubai workshop, and when to stop driving. Free full inspection — written report. Written quote before any work — you approve first.

★★★★★ 4.9 on Google · 40+ verified reviews

Call 054 666 4838 WhatsApp 054 666 4838 Call 04 288 3184

First: is your Mercedes on AIRMATIC?

AIRMATIC is Mercedes-Benz air suspension: an air strut at each corner (an air spring with an adaptive damper), a compressor, a valve block, level sensors and a control module that keeps the car at its target height. It is standard on many S-Class, GL and GLS cars and optional on many E-Class, CLS, ML and GLE versions. Some older SL, S-Class and CL models use ABC (Active Body Control) instead — a hydraulic system with its own pump and fluid, which is checked differently. Most C-Class, A-Class and GLA cars use steel springs.

A ride-height or suspension-mode button on the centre console, or a vehicle-level menu on the screen, is a strong hint that you have AIRMATIC. Not sure? Send us the model and year and we will tell you before you book.

The symptoms, one by one

“Stop — vehicle too low” (red) — the car has dropped below the lowest height the system accepts. This is the message to take seriously: a tyre can rub the arch, and driving on the bump stops damages the strut.
“AIRMATIC — visit workshop” (yellow) — the module has stored a fault. The car may still sit at a normal height; the fault code tells us where to start looking.
One corner sinking overnight — a slow leak on that corner, most often the air strut itself or its fitting. Morning photos of the stance help us a lot.
Front or rear sitting low evenly — a leak in a line or the valve block, or a compressor that can no longer keep up.
Compressor running for a long time, or humming after you switch off — usually the compressor working against a leak. On some models a sticking compressor relay keeps it running until it overheats, so the relay is part of every check.
A bouncy, floaty or harsh ride, or a knock over bumps — the damper side of the strut, a damper valve or its wiring, rather than an air leak.
Warning only in the afternoon heat — a compressor that overheats while fighting a leak, then recovers once the car cools down.

None of these on its own tells you which part has failed. The message only says the system could not reach or hold its target height, or that a component did not answer as expected.

What usually fails — confirmed only by testing

Air struts — the rubber bellows age and crack, faster in Dubai’s heat, and the damper inside can wear out on its own
Compressor and its relay — a tired compressor builds pressure slowly; a relay that sticks can burn out a healthy compressor
Valve block, lines and fittings — small leaks that let the car sag evenly, or one axle at a time
Level sensors and linkages — a wrong height reading makes the module stop adjusting or set the car at the wrong height
Wiring, connectors and battery voltage — corrosion or a weak battery can bring up AIRMATIC faults with nothing mechanically wrong
Calibration — after a strut, sensor or module is replaced, the system has to be set to the correct heights again

Replacing the compressor because “it is usually the compressor” is how owners pay twice: a leak that was never found will wear out the new one as well. For repair options and the parts we fit, see our Mercedes air suspension (AIRMATIC) repair page.

What we check at Velokar

1. Full-system scanWe read the suspension module and the rest of the network with dealer-level scan equipment, including stored faults and the conditions when they were set.

2. Ride height at each cornerWe measure the actual height against specification and watch live level-sensor data while the system raises and lowers the car.

3. Leak, compressor and relay testStruts, lines, fittings and the valve block are leak-tested; the compressor’s pressure build-up and run time are measured, and the relay and wiring are checked.

4. Written report and quoteYou get the findings in writing with photos and an itemized quote. You choose genuine, OEM-equivalent or good used parts. Nothing starts without your approval.

Free full inspection — written report. We stand behind our work.

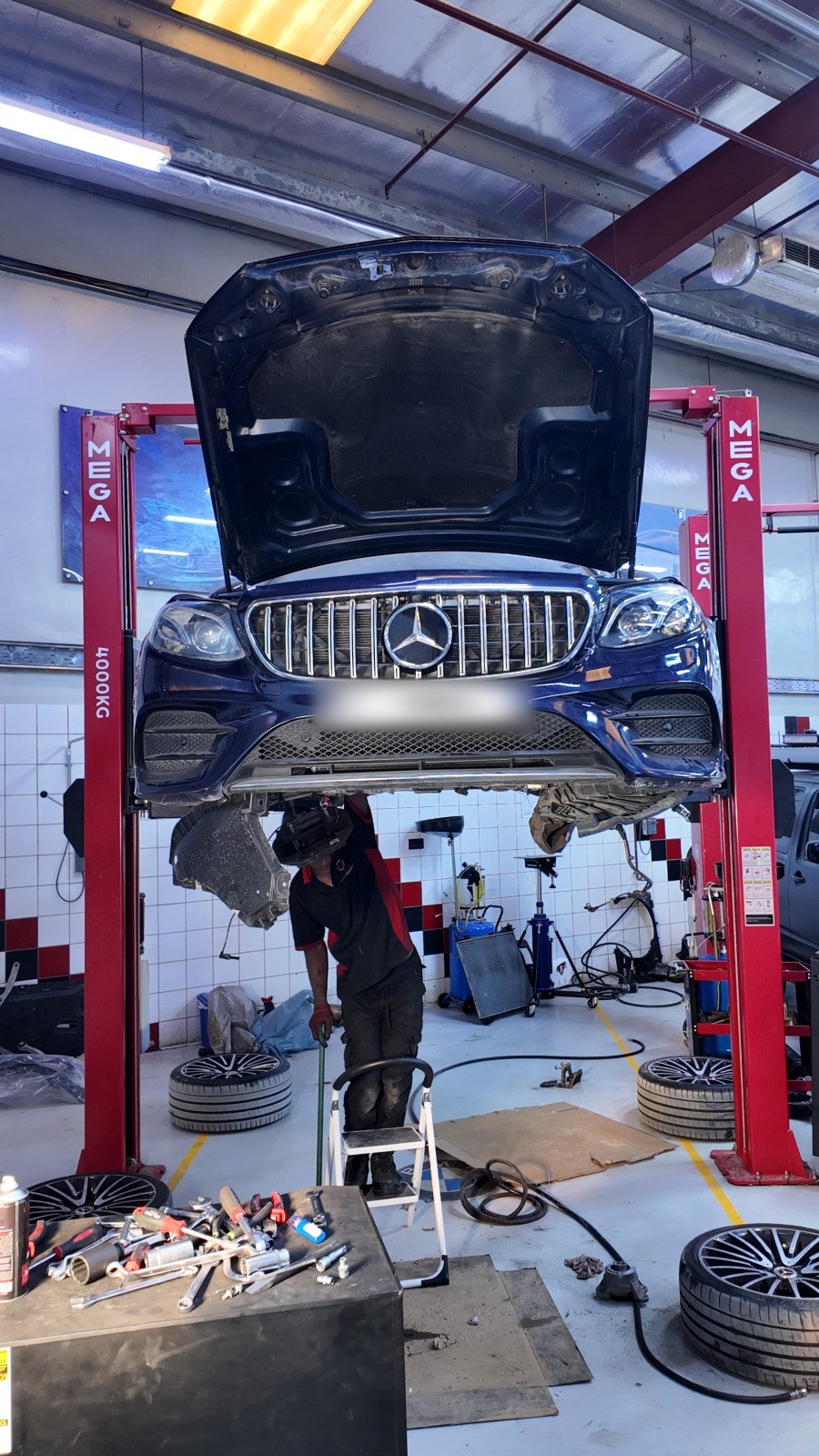

Mercedes-AMG raised on a two-post lift while a Velokar technician works underneath — Under the car on the lift

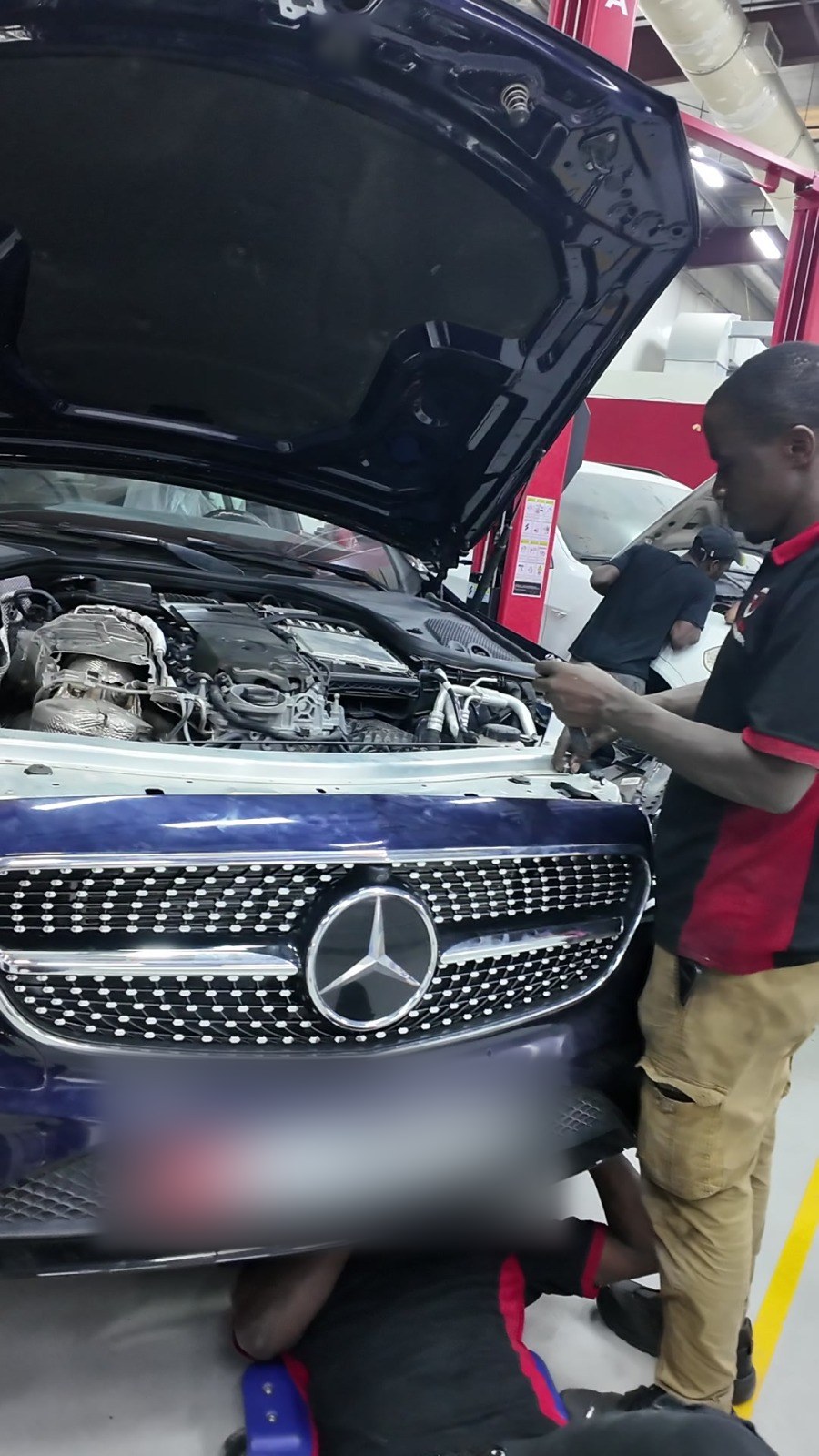

Mercedes E-Class with the bonnet open and Velokar technicians at work — Mercedes E-Class in the workshop

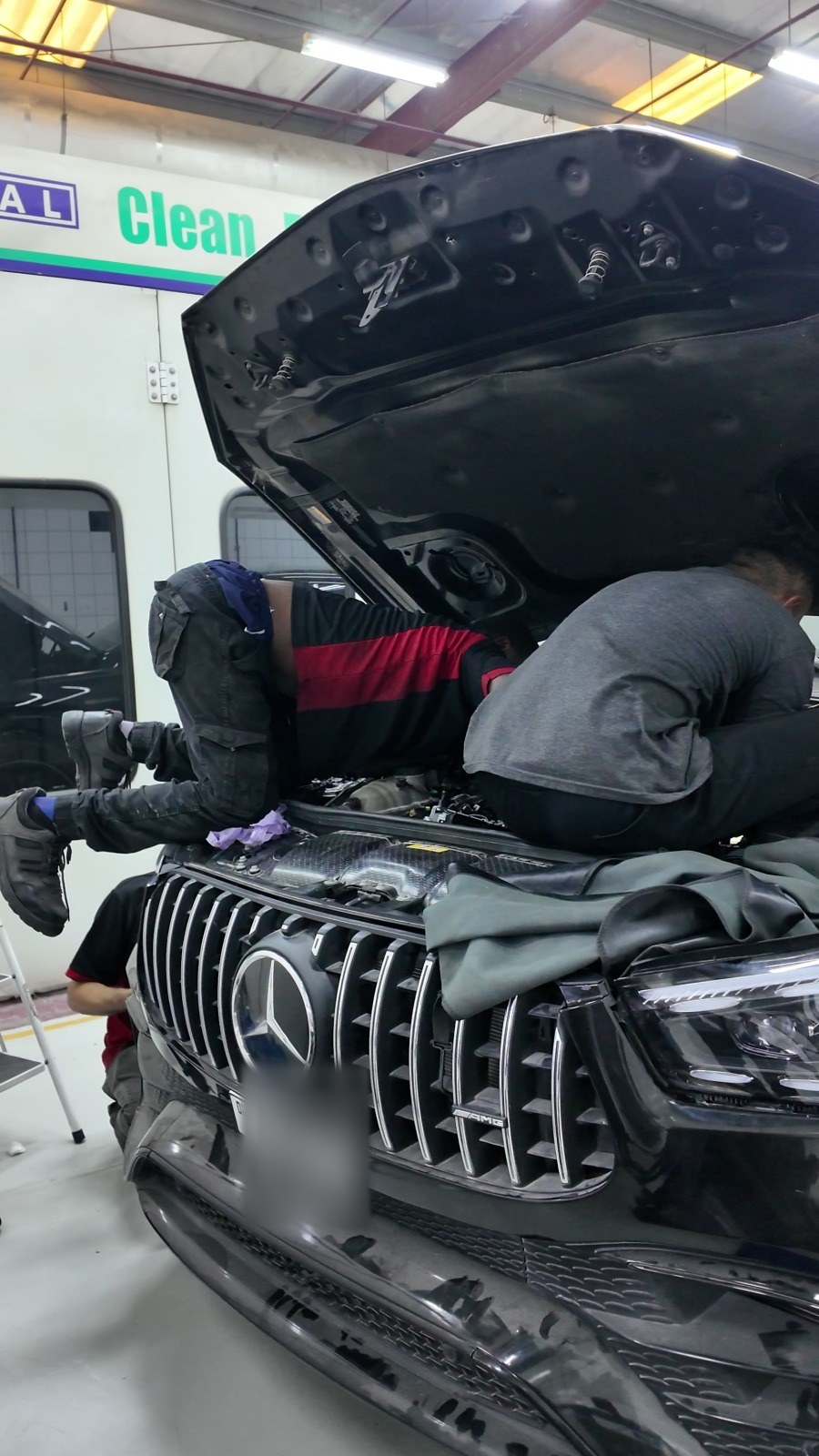

Two Velokar technicians working at the front of a black Mercedes-AMG SUV — Mercedes-AMG SUV in our Al Quoz workshop

When to stop driving

Red “Stop — vehicle too low”, or the car on its bump stops: drive only as far as you must — arrange car recovery to our workshop instead
Height changing while you drive, or a corner dropping suddenly: stop in a safe place and call us
Yellow warning only, car at normal height: book within days — in summer heat a small leak makes the compressor work harder every day

Pickup and delivery are available within Dubai. Send your model, year, the warning text and a photo of the car’s stance on WhatsApp 054 666 4838.

Buying a used Mercedes with AIRMATIC?

Air suspension is one of the first things worth checking on a used S-Class, GLS, GLE or E-Class. A car that sits level in a showroom can still have a strut that leaks overnight or a compressor near the end of its life. Our pre-purchase inspection includes a scan of the suspension module and a ride-height and leak check, with a written report. For everything else we do on these cars, see our Mercedes repair page; Range Rover owners with similar warnings can read our Range Rover suspension fault guide. Not sure what we do and don’t do? Read the plain list.

How we work

1. Inspect and documentWe inspect the car and document what we find, with photos. The full inspection is free — with a written report.

2. Written report and quoteYou get a written report and an itemized quote before any work starts. No surprises, no verbal estimates.

3. You choose the partsGenuine, OEM-equivalent or quality used parts — we lay out the options and prices, and you decide before we order.

4. Nothing starts without your approvalYou decide what gets done and what waits, and you get the old parts back — not just an invoice. Pickup and delivery available within Dubai.

Our team speaks Arabic and English, and the owner is on the workshop floor. We give a fair diagnosis: what needs fixing now, and what can safely wait. And while this page is about Mercedes, Velokar is a multi-brand workshop — American, European, Japanese, Korean and Chinese makes are all welcome.

Find us

Velokar Auto Repairing — Al Quoz Industrial 3, Warehouse 3, Dubai. Open our location on Google Maps.

Hours: Mon–Sat 8:30 AM–6:30 PM · Sunday closed.

★★★★★ 4.9 on Google · 40+ verified reviews

Read our Google reviews

Quick answers

Can I drive my Mercedes with an AIRMATIC warning?

If the car is at its normal height and the message is the yellow “AIRMATIC — visit workshop” type, short careful trips are usually possible — book an inspection within days. If the red “Stop — vehicle too low” message appears, or the car sits on its bump stops, do not drive far; arrange recovery instead.

Is it always the compressor?

No. A leaking air strut, line, fitting or valve block, a faulty level sensor, a relay or a weak battery can all bring up the same warning. A compressor that runs for too long is often the victim of a leak, not the cause. We test before we replace anything.

Why does my Mercedes sink overnight on one corner?

A slow leak — most often in the air strut on that corner or in its fitting — lets the air out while the car is parked. The compressor lifts the car again on start-up, and works harder each week until the leak is fixed.

Does my Mercedes have AIRMATIC?

Many S-Class, GLS and GL cars have it as standard, and many E-Class, CLS, ML and GLE versions have it as an option. A ride-height or suspension-mode button on the centre console, or a vehicle-level menu, is a strong hint. Send us the model and year and we will tell you.

How do I get a quote?

Send your model, year, the exact warning message and a photo of the car’s stance on WhatsApp 054 666 4838, or bring the car to Al Quoz Industrial 3, Warehouse 3. Free full inspection — written report, then an itemized quote before any work.
